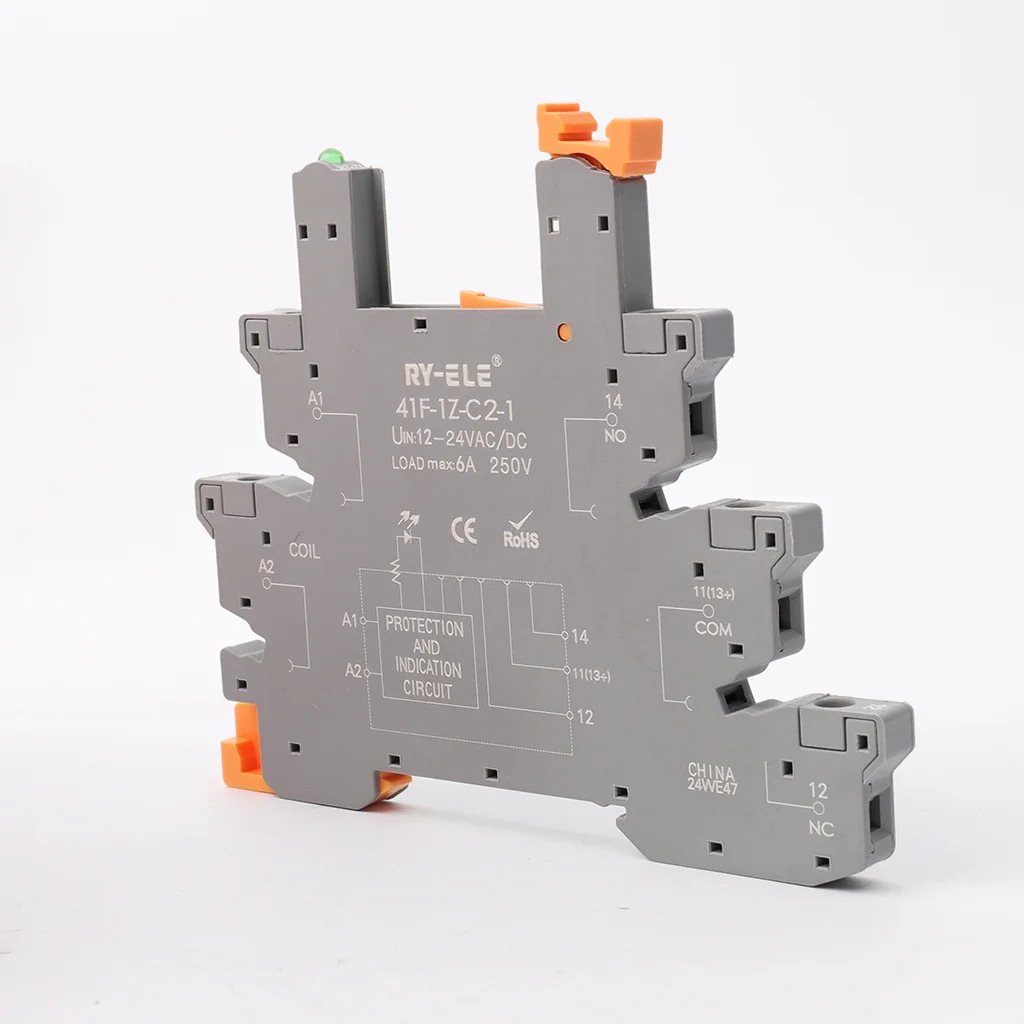

RELAY SOCKET

41F-1Z-C2-1
继电器底座超薄系列41F

特性：介质耐压可达4000VAC,绝缘电阻1000MΩ The dielectric withstand voltage can reach 4000VAC, and the insulation resistance is 1000MΩ 带手指保护功能 With finger protection 带继电器起拔钳，锁死防脱落，方便更换 With relay pulling pliers, lock to prevent falling off, easy to replace 内置保护电路，实现通电指示、线路保护、扩展继电器输入电压范围等功能 Built-in protection circuit to realize power indication, line protection, extended relay inputvoltage range and other functions 功耗小、方便使用 Low power consumption and convenientusing 外壳采用PA6+G30F环保阻燃尼龙 The shell adopts PA6+G30F environmentally friendly flame retardant nylon

获取报价 › 下载规格书

支持替代选型、样品确认、标签包装及 OEM 项目配套

CROSS REFERENCE

不同品牌可替换型号

整理不同品牌的参考对应型号，方便项目选型、旧型号替换和快速查询。

品牌	参考替换型号
施耐德	RSLZVA1
欧姆龙	G2RV-ST500
和泉	RV8H-L
ABB	CR-S012/024VADC1SS CR-S220/240VADC1SS
西门子	SUF05F-AD24 3RQ0101-1BB40
魏德米勒	TRS 24-230VUC 1CO EMPTY ED2 TRS 24-230VUC 1CO EMPTY TRS 24VDC 1CO EMPTY TRS 120VAC RC 1CO EMPTY TRS 230VAC RC 1CO EMPTY
菲尼克斯	PLC-BSC- 24DC/21 PLC-BSC- 24UC/21 PLC-BSC-120UC/21 PLC-BSC-230UC/21 PLC-BSC- 24DC/ 1/ACT PLC-BSC- 24DC/ 1/SEN PLC-BSC-120UC/ 1/SEN PLC-BSC-230UC/ 1/SEN PLC-BSC- 24DC/21-21 PLC-BSC- 24UC/21-21 PLC-BSC-120UC/21-21 PLC-BSC-230UC/21-21 PLC-BSC- 24DC/ 1- 1/ACT PLC-BSC- 24DC/21HC PLC-BSC- 24UC/21HC PLC-BSC-120UC/21HC PLC-BSC-230UC/21HC PLC-BSC- 24DC/ 1IC/ACT PLC-BSC- 5DC/21 PLC-BSC-120UC/21/SO46 PLC-BSC-120UC/ 1/SEN/SO46 PLC-BSC-230UC/21/SO46 PLC-BSC-230UC/ 1/SEN/SO46 PLC-BSC-120UC/21-21/SO46 PLC-BSC-230UC/21-21/SO46 PLC-BSC-120UC/21HC/SO46 PLC-BSC-230UC/21HC/SO46 PLC-BSC- 24DC/21/SO46 PLC-BSC-TTL/1 PLC-BSC- 24UC/ 1/ACT PLC-RSC- 24UC/21 PLC-OSC-24DC/24DC/2/ACT PLC-RSC-230UC/21 PLC-OSC-24DC/48DC/100 PLC-RSC- 24DC/21 PLC-RSC- 24DC/ 1/ACT PLC-RSC- 24DC/21AU PLC-OSC-24DC/24DC/2 PLC-RSC-120UC/21 PLC-OSC- 24DC/230AC/ 1
